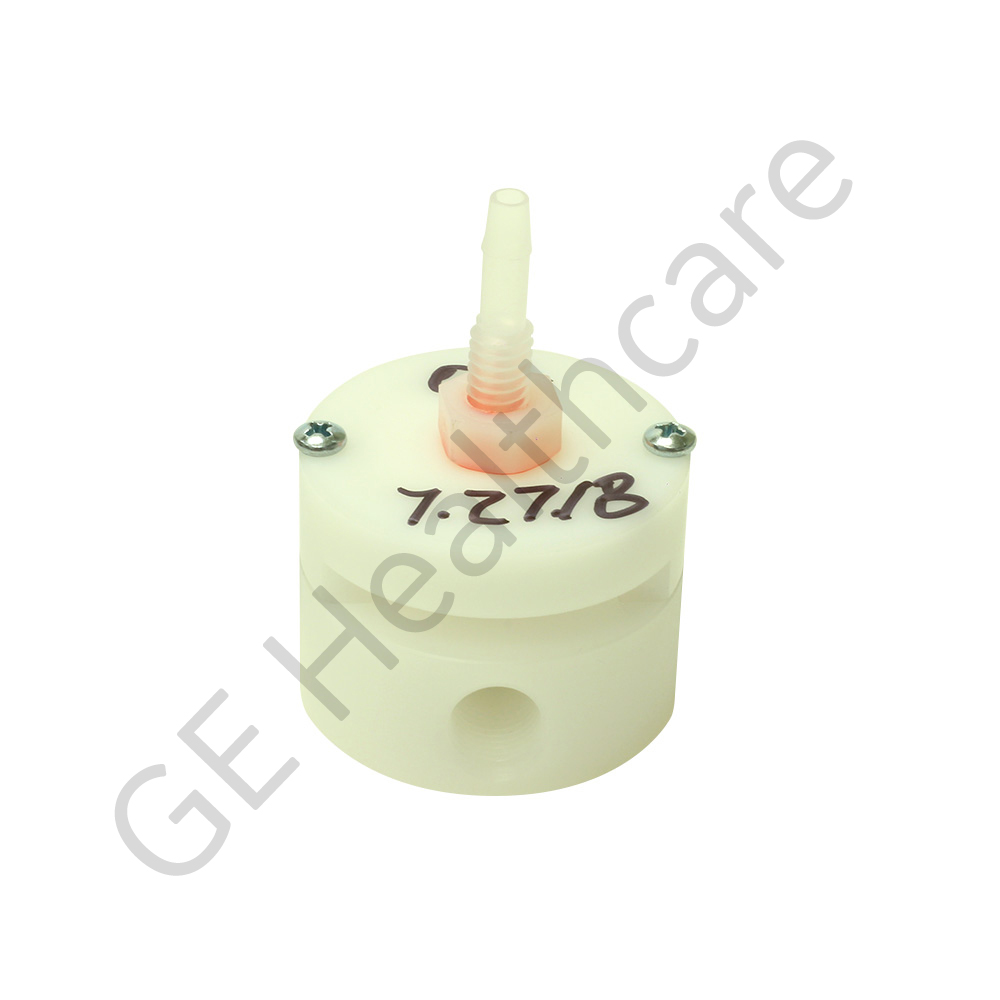

Diaphragm Actuated Relief Valve

M1091646
Maternal Infant Care
GE Healthcare
Outright
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • Impact resistant
  • Rigid
  • Does not contain any sharp edges
  • Glossy finish

Product Overview

The Diaphragm Actuated Relief Valve component comes in Positive Inspiratory Pressure (PIP) circuit under integrated resuscitation system in a warmer, which is used to provide a quick neonatal resuscitation therapy. Resuscitation is a process of clearing the airways, assisting breathing and providing oxygen or medical air/oxygen mixture for circulation in newborn babies who have difficulty in adjusting to external environment outside uterus which can lead to respiratory related issues. The PIP circuit limits the airway pressure of air and is adjustable by the user. The circuit consists of a PIP valve, restrictors and bleeds, and diaphragm actuated relief valves beginning with the PIP regulator. Gas from the PIP regulator passes through the valve, through the restrictors and bleeds and to the relief valve. The relief valve body has an orifice open to atmosphere and it is obstructed by a diaphragm when the diaphragm is pressurized. As long as the effective diaphragm pressure is greater than the pressure on the flow inside, the flow proceeds to the patient with no loss to atmosphere. When the pressure in the gas flow circuit exceeds the effective pressure of the diaphragm, it allows the airway pressure to relieve to atmosphere through orifice.

Compatible Products

Giraffe Warmers

Giraffe Warmers

Giraffe Warmers Resuscitation Systems

Giraffe Warmers Resuscitation Systems

Panda iRes Resuscitation Systems

Panda iRes Resuscitation Systems

Panda iRes Warmers

Panda iRes Warmers

Panda and Giraffe Warmers

Panda and Giraffe Warmers
