Wire Harness Transport Isolated Mains RoHS

6600-0816-700
Maternal Infant Care
GE Healthcare
Outright
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • 24.5 inch and 18 inch Long Cable Harnesses
  • Field Replaceable Unit (FRU)
  • With Reinforced PVC Fiberglass Sleeve Insulation
  • Easy to install Connectors

Product Overview

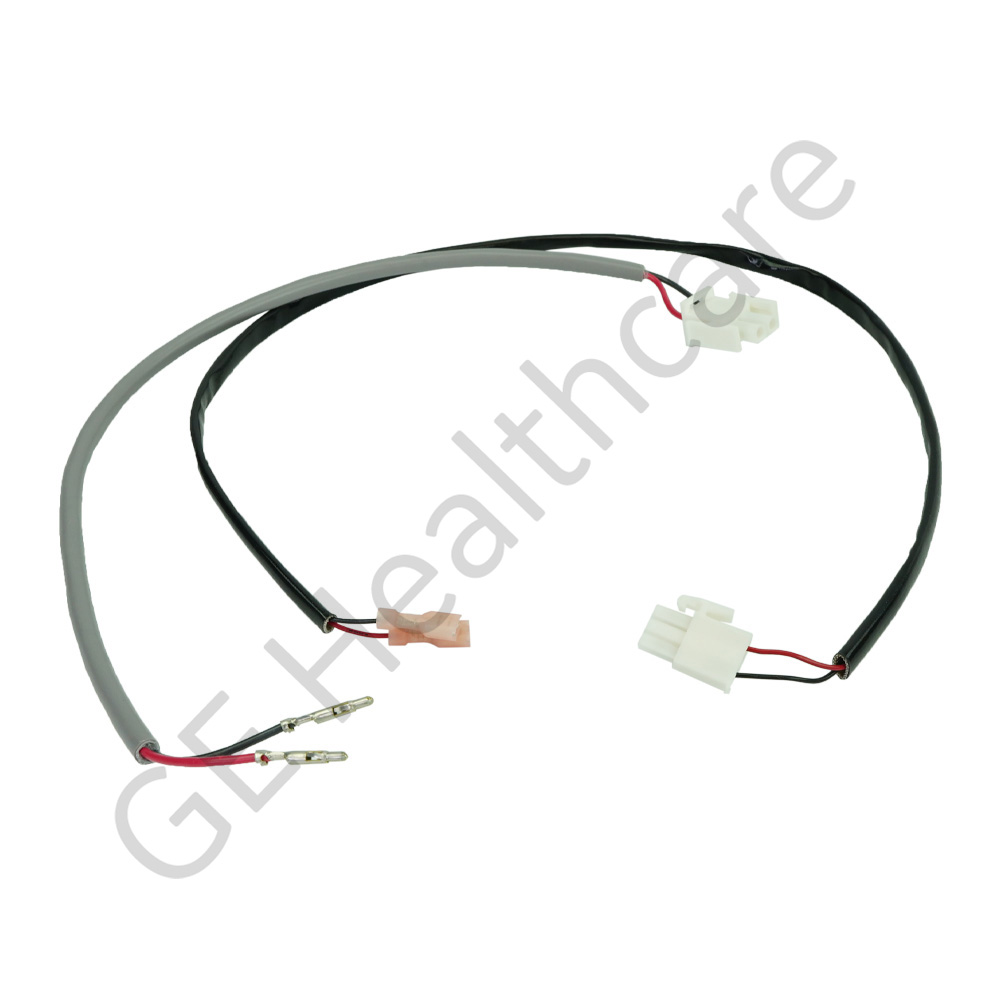

This isolated transport main wire harness assembly consists of two cable harnesses which are used in the Basic Omnibed Carestation systems. The 24.50 inch long cable harness comes with 2x quick disconnect terminals at one side and a 3 Position, 1 Row, Mate-N-Lock connector at the other end. The connection between these connectors are established using two 22 AWG, Stranded, Tinned Copper conductors having Red and Black colored PVC jacket. The wires are further insulated using a PVC Fiberglass sleeve for enhanced protection and durability. The other 18 inch long cable harness of this kit comprises of a 2 Position, male, Mate-N-Lock connector at one end which is connected to the 2x Tin-Phosphor Bronze Pin contacts at the other end. A UL 2464 unshielded cable is used to interconnect both connectors of the second harness. Use of high quality connectors, cables and wires on these harnesses assures reliable operation, efficient functioning and long service life. The difference in length and type of connectors used in these harnesses aids in easy identification during installation. The RoHS item will be shipped in suitable packaging to provide adequate protection during transit.
