UPS Relay Assembly 5492863

5492863
2297843
X-Ray
GE Healthcare
Exchange - Return Defective
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • RoHS complaint
  • Dry Contact I/O SmartSlot Card
  • 6 Configurable Output Relays
  • 4 Configurable Input Contacts

Product Overview

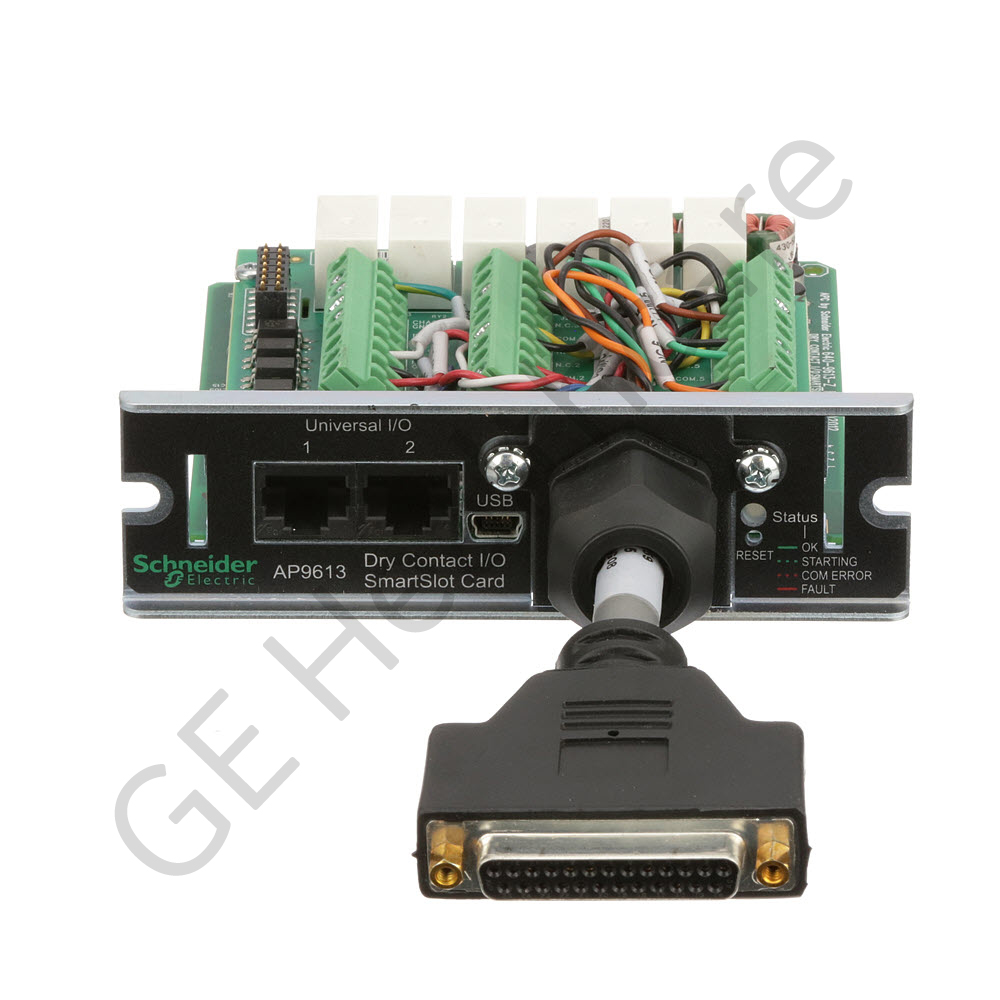

The UPS (Uninterrupted Power Supply) Relay Assembly includes a UPS Relay IO Module and Transition Cable Assembly. The UPS Relay IO Module is a printed circuit board assembly that installs in the SmartSlot of UPS host device. It works with most UPS devices that have an output rated less than or equal to 160 kVA. The card provides interface expansion and other options for increased UPS monitoring and control functionality. This card monitor the external triggers and initiate actions on external devices. It configures all actions with the easy to use configuration utility available on the card. The module provides graceful, unattended shutdown for the connected servers when an extended power outage occur. The transistion cable assembly includes a cable with 16 conductors of AWG 22 connected with a 25 pin SUB-D type connector. This transistion cable is connected to the terminal blocks of UPS relay I/O module. This assembly can be used with Precision 500D system.

Compatible Products

Precision 500D

Precision 500D

Robust, digital performance at an efficient dose
It starts with the imaging chain, which features a 12-bit CCD-based camera.Then there’s AutoEx, which automatically adjusts key image-acquisition parameters in real time for optimum quality. Meanwhile, closed-loop Automatic Brightness Control and patented extended Dynamic Range circuitry maintain contrast and minimize blooming.

Substitute Parts :

Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.

Equivalent partPart Details
2297843
