Cable Table Gantry Processor J5 to Power Pan - EMC

5120649
2373436
PET/CT
GE Healthcare
Outright
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • Flexible and thin cable
  • Easy to connect and disconnect
  • Comes with a ferrite core for EMI suppression
  • Shielded high-performance RJ45 plug for demanding EMI/RFI environments

Product Overview

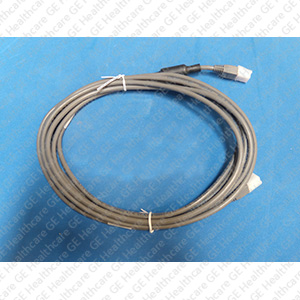

This cable assembly interfaces between the table gantry processor to power pan used in PET/CT System. It comprises of RJ45 plug on either ends with gray snagless boots and a ferrite core at on connector side. Ferrite cores provides an effective way of coupling high-frequency resistance into a cable in order to reduce the common-mode current, and hence the radiation from the cable. RJ45 is a superior shielded Cat5e connector system that allows users to perform factory grade terminations in the field.An unique metallic strain relief provides superior cable retention and a reliable 360° shielding contact. The cable used is a four pair Shielded cable, 24AWG with tinned copper outer shield drain wire and a gray PVC jacket. This cable delivers low voltage analog data and signal transmission within enclosures from controllers and I/O's to devices such as temperature and pressure sensors, relays, valves, thermocouples, actuators, contactors, push buttons and alarms. It is compatible with Discovery 670 Computed Tomography (CT) System.

Compatible Products

VCT

VCT

Lightspeed RT Xtra

Lightspeed RT Xtra

Lightspeed RT

Lightspeed RT

Lightspeed Pro 16

Lightspeed Pro 16

Brightspeed Edge

Brightspeed Edge

Lightspeed 16

Lightspeed 16

Lightspeed Ultra

Lightspeed Ultra

Brightspeed Excel

Brightspeed Excel

Brightspeed Elite

Brightspeed Elite

Lightspeed Plus

Lightspeed Plus

Lightspeed QXi

Lightspeed QXi

Discovery ST

Discovery ST

Substitute Parts :

Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.

Equivalent partPart Details
2373436 TGP TO POWER PAN LAN CABLE
