Optical Switch Harness, PET/CT Positioning

2350570
PET/CT
GE Healthcare
Outright
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • High optical performance
  • Low Losses
  • Short Switching Time
  • Easy to Connect Connector

Product Overview

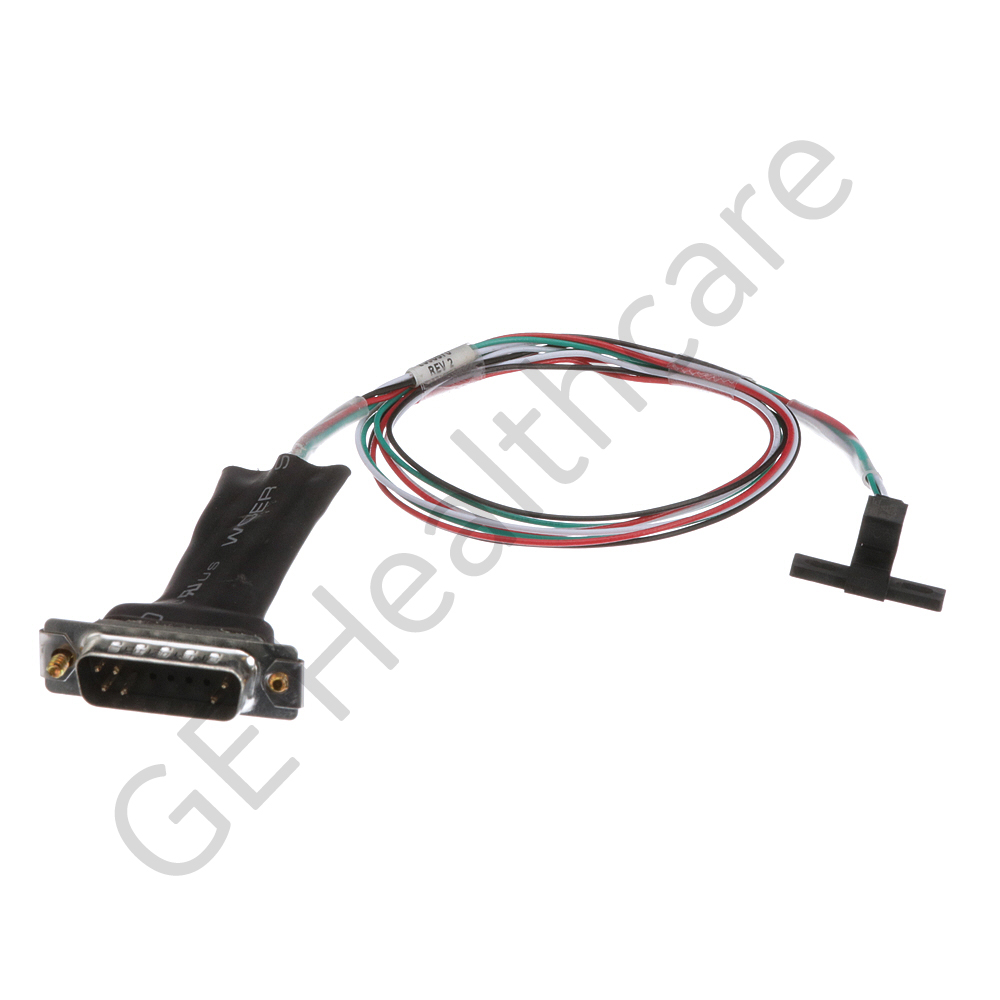

This Optical Switch cable harness assembly is a part of the positioning mechanism of the DLS table assembly which are used with the GE's Discovery ST, Discovery ST (4 Slice), Discovery ST (8 Slice), Discovery ST (16 Slice) PET/CT Systems. The cable assembly comprises of a slotted optical switch at one end which is interfaced to a 15 position D-Sub connector at the other end. The optical switch housing comes with side mountings and is made from an opaque grade of injection-molded plastic that minimizes the assembly’s sensitivity to visible and near-infrared ambient radiation. This optical switch acts as a phototransistor in which switching occurs whenever an opaque object passes through the slot and interrupts the Infrared beam. The 15 position D-sub connector is connected with the optical switch using high quality 24 AWG and 18 AWG red, black, green and white wires. The cable assembly is protected with proper insulation and heat shrink tubes. The cable assembly comes with pre-labeled informations for easy identification.

Compatible Products

Discovery ST

Discovery ST
