Diving Board Extension Spring 10.75" 2.1 lbs/in
2315489 | |
X-Ray | |
GE HealthCare | Outright |
Enter your approval number and submit to add item(s) to cart.
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Select your approver's name and submit to add item(s) to your cart
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Features
- ASTM A228 Grade Music Wire Offers Good Surface Hardness
- Good Tension And Resilience Properties
- Highly Reliable
- Good Corrossion Resistance
Product Overview

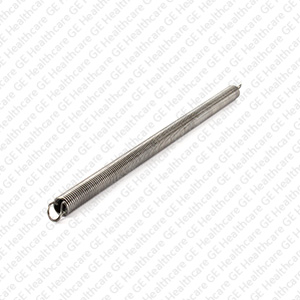

Extension springs are also known as a tension spring with helical wound coils. The spring wire is wrapped tightly together to create tension. This extension springs comes with round closed loop ends (eyelets) throgh which it can be attached to the shaft of 0.38 inch diameter. The function of an extension spring is to provide extended force when the spring is pulled apart from its original length. This 10.75 inch long extension spring is made up of ASTM A228 grade Music wire of 0.068 inch diameter. The high quality steel wire gives it good exterior finish and rust proofing oil coating on the surface provides good corrossion resistance properties, which in turn leads to increased service life of the product. This extension spring provides a spring rate of 2.1 lb/in and is compatible for use in the cable arm assemblies of GE's Precision 500D X-Ray systems.
Compatible Products
Precision 500D
Robust, digital performance at an efficient dose
It starts with the imaging chain, which features a 12-bit CCD-based camera.Then there’s AutoEx, which automatically adjusts key image-acquisition parameters in real time for optimum quality. Meanwhile, closed-loop Automatic Brightness Control and patented extended Dynamic Range circuitry maintain contrast and minimize blooming.
