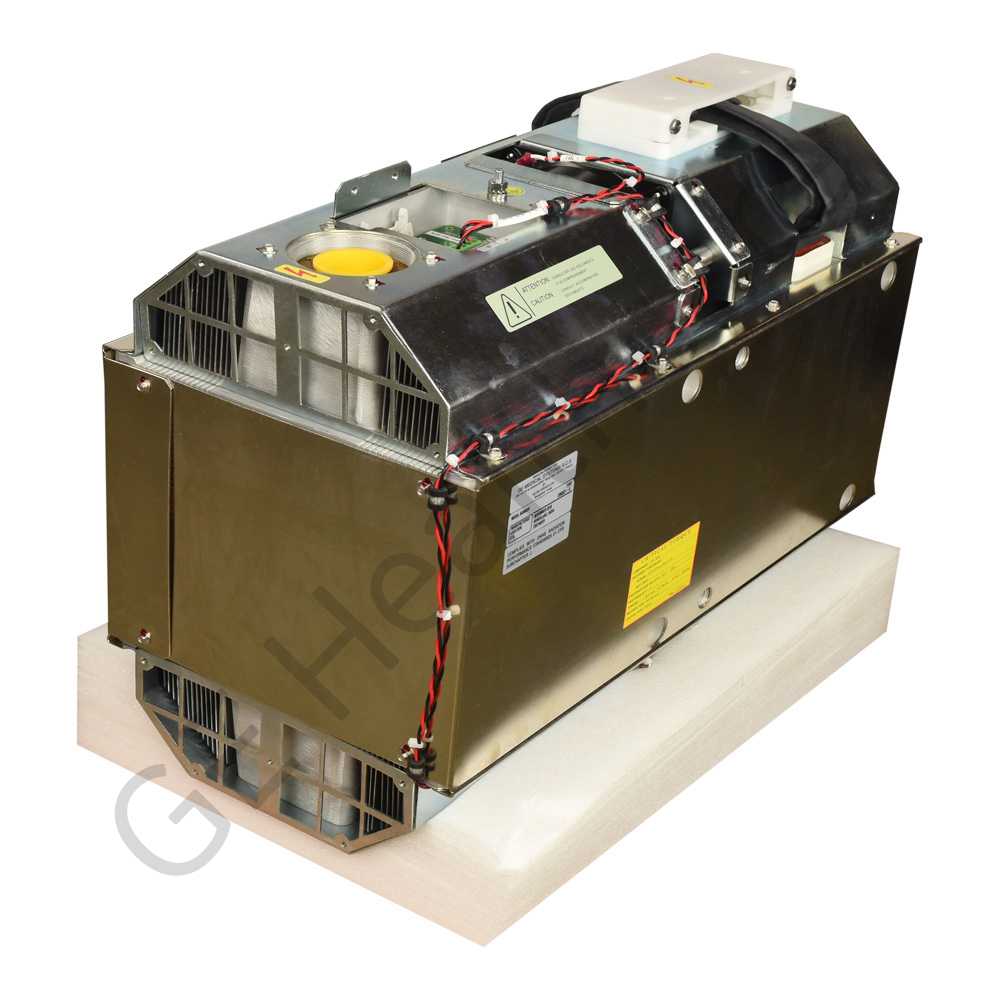

Jedi H4 MPHV Tank with Shields - RoHS

2266521-6
Computed Tomography (CT)
GE Healthcare
Outright
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • Does not contain any dirt, dust, visible oils, lint, fibers, rust, chips and other contaminants
  • Accurate, advanced and sensitive
  • Safe packages providing basic protection from moisture, crushing, paint scuffing, corrosion, temperature and other product specific needs as required
  • Reliable and durable

Product Overview

The Jedi H4 MPHV Tank with Shields - RoHS is the assembly part of the VCT and Pro32 gantry common rotating assembly, which is used in the Light Speed 7 x CT scanner. It is placed on the VCT and Pro32 gantry frame. It consists of an H4 MPHV tank and X-ray tube field strapping kit. The Jedi-HP generator produces a mono-polar high voltage needed for the Hercules mono-polar X-ray tube. It consists of the following sub-assemblies: monopolar high voltage tank, inverter, auxiliaries (rotor control, filament drive, and LVPS400). The high voltage tank is a monopolar tank, which is made up of 3 transformers a main high voltage transformer to supply an X-ray tube with a DC high voltage and 2 filament transformers to supply current to a large and a small filament of the tube. The cooling has to allow a cover’s temperature < 60° C for 12 kW average power. The X-ray tube field strapping kit is comprised of a plastic strap, strap buckle and polyethylene zip lock bag. This product is RoHS compliant and is approved for today’s safety standards. The product is tested to work at extreme atmospheric conditions. It is diligently designed for high performance and reliability.
