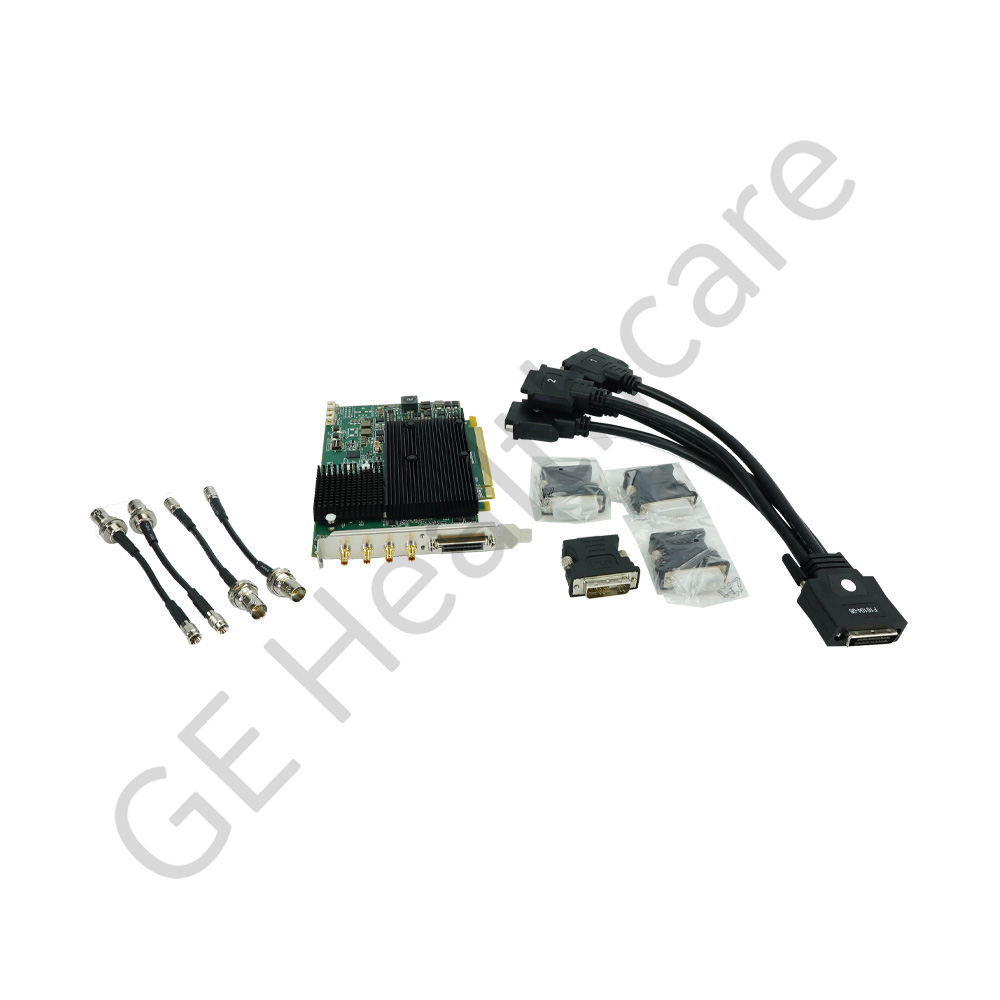

Graphics and video capture card

2088825-001
Diagnostic ECG
GE Healthcare
Outright
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • PCIe® x16 half-length board
  • Capture from a variety of legacy video sources with support for SD/HD analog/digital video formats
  • Optimize multi-channel applications via dual independent video inputs and outputs on a single card
  • Low Power Consumption

Product Overview

This Graphics and Video capture card is part of computer assemblies of GE's Mac-Lab recording systems. It is a high-performance graphics adapter with video capture capabilities, that provides an ideal solution to the legacy standard definition (SD) and advanced high definition (HD) video needs of many medical imaging applications. It features two independent video input paths. Each video input path can connect and switch between RGB / CVBS / YPrPb, DVI-D / and SDI signal types through DVI-I and BNC connectivity respectively. In addition, the card features four independent video outputs, two DVI-I and two SDI. The video outputs are not only independent from each other but are also independent from the video inputs for maximum configuration flexibility. The video outputs support RGB / DVI-D / and SDI signal types through DVI-I and BNC connectivity. A PCIe® x16 host interface provides the card with the throughput necessary to handle the transfer of two HD video streams to host memory. This Graphics and Video capture card is used with computer assemblies of Mac-Lab, CardioLab and ComboLab recording Diagnostic ECG systems.
