Shelf 67.5 cm with Cable Management Kit

1006-8283-000
Anesthesia Delivery
GE HealthCare
Outright
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • Easy to use
  • Corrosion resistant and light weight shelf top
  • Good workability bracket
  • Shelf to place the monitor

Product Overview

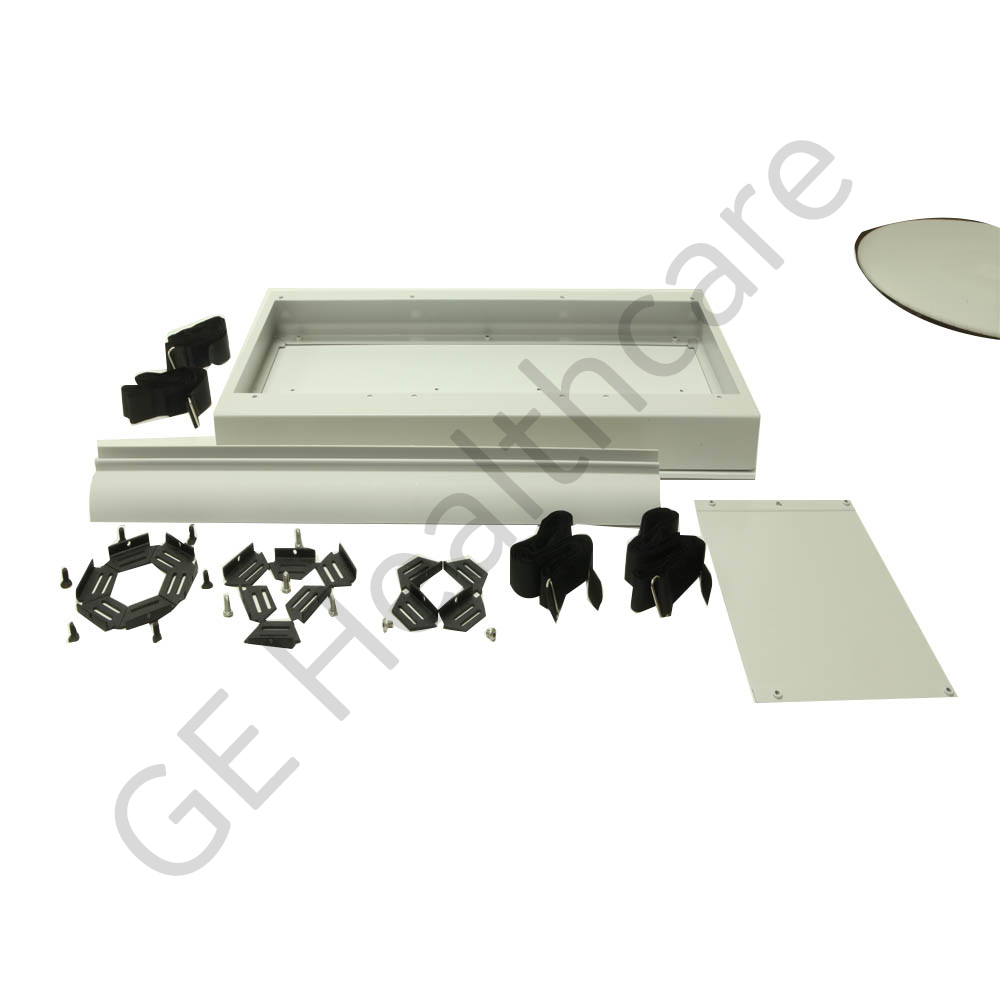

This Shelf cable with management is used in the Anesthesia Delivery System. It comprises of shelf top,cover shelf, raceway, monitor mounting strap, clip and screws. The shelf top is made of aluminum which has very good corrosion resistance to seawater, marine and industrial atmosphere. It also has very good weldability and good cold formability. It contains 6 tapered holes to fix to the system with spacers. The cover lower bracket is made of cold rolled steel A366 which is known for its very good formability and comparatively high strength.It comes with 4 self clinching nuts to fix to the system. The extrusion raceway is a conduit that forms a physical pathway for electrical wiring and protect wires and cables from heat, humidity, corrosion, water intrusion and general physical threats. This part is free from kinks and twists that cannot be removed with finger pressure.The clip and strap is used to instal the monitor to the shelf.This shelf is compatible with Aestiva/5 7100 and Aestiva/5 7900 Anesthesia Delivery System.
